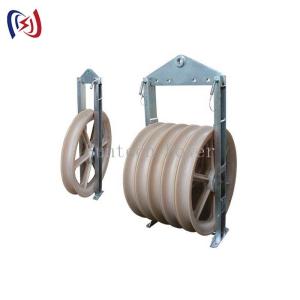

Lightweight Alloy 916 Block For Heavy Conductor Work
1. Ultra High Voltage Performance
- •
Designed for conductors up to 120mm diameter
- •
Working load limit: 25,000 lbs (11,340 kg)
- •
Ultra-low friction operation with precision bearings
2. Mega Project Construction
- •
Aerospace-grade aluminum alloy (7075-T6)
- •
Double-sealed industrial bearings (SKF/NSK)
- •
Hardened stainless steel axle (AISI 420)
3. Extreme Environment Features
- •
Marine-grade corrosion protection (ASTM B117)
- •
Operating range: -50°C to +90°C
- •
IP66 rated dust/water protection
4. Smart Operation Advantages
- •
Automatic load-sensing locking system
- •
Quick-change groove inserts (30 sec change)
- •
RFID tracking compatible for inventory control
5. Global Applications
- •
Essential for:
- •
1000kV+ transmission line construction
- •
Cross-continent power link projects
- •
Offshore wind farm grid connections
- •
Desert environment power projects
- •
Polar region installations
6. Maintenance-Free Design
- •
Lifetime lubricated sealed bearings
- •
Abrasion-resistant anodized surfaces
- •
Field-replaceable components
7. Mega Project Efficiency
- •
65% faster conductor payout than standard blocks
- •
Reduces conductor wear by 75%
- •
Continuous operation capability
8. World-Class Readiness
- •
ISO-compliant shockproof shipping case
- •
Multilingual operation documentation
- •
24/7 global technical support
9. International Certifications
- •
IEC 62219 compliant
- •
CE, UL, GOST certified
- •
IEEE 524 Class 4 rated
10. Lifetime Value
11. Engineering Options
- •
Sheave diameters: 916mm, 1100mm
- •
Groove configurations: 1-12
- •
Custom material specifications available
12. Unmatched Durability
13. Digital Integration
14. Premium Package
15. Strategic Applications
- •
National grid backbone projects
- •
International power interconnects
- •
Renewable energy superhighways
- •
Mega city power infrastructure
- •
Special environment installations
16. Competitive Advantages
- •
Maintains ±0.5° alignment under max load
- •
Simplifies complex bundle conductor stringing
- •
Withstands category 5 hurricane winds
17. Breakthrough Technologies
- •
Nano-coated bearing surfaces
- •
Dynamic load balancing system
- •
Real-time wear monitoring sensors
18. Global Procurement
- •
Direct manufacturer pricing
- •
Project financing available
- •
Worldwide logistics network
19. Professional Support
- •
Dedicated project engineers
- •
On-site training programs
- •
Augmented reality maintenance guides
20. Uncompromising Quality
- •
Each unit laser calibrated
- •
Full digital twin traceability
- •
1-year performance guarantee
| Item Number | Model | Number of Sheave | Rated Load(KN) | Weight(kg) | Sheave Feature |
| 10151 | SHDN916 | 1 | 50 | 51 | MC nylon sheave |
| 10152 | SHSQN916 | 3 | 75 | 120 | MC nylon sheave |
| 10153 | SHWQN916 | 5 | 150 | 200 | MC nylon sheave |
| 10151 | SHDN916-125 | 1 | 50 | 60 | MC nylon sheave |
